Button-fix Type 1 Flush

A fully-recessed connector solution

For applications where panel-to-panel contact is required. It fits a simple oval rebate and can be recessed into the edge of a panel of at least 28mm thick or the face of a panel of at least 18mm thick.

Both parts of the connector are moulded from 30% glass filled nylon PA6 - a strong and robust engineering polymer. As a general guide, four Button-fix Type 1 Flush fasteners on a vertical panel will support loads weighing up to a maximum of 100kg (220lbs), provided that the screws and substrate are properly matched and all other installation instructions complied with. Manufactured in the UK.

watch the video

project gallery

Do you have a technical question about Button-fix? Email our technical team and we’ll be happy to help

Using Type 1 Flush Button-fix

When you require a strong yet demountable connection between panels with no gap between them, Type 1 Flush is the ideal choice.

Typical uses include:

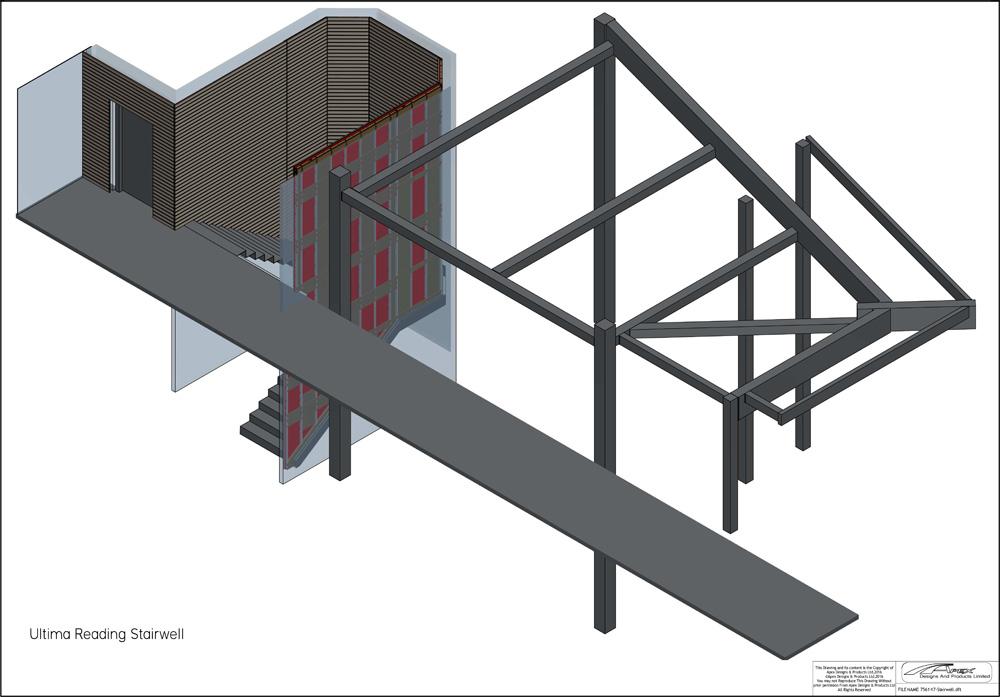

Reception and bar counter cladding

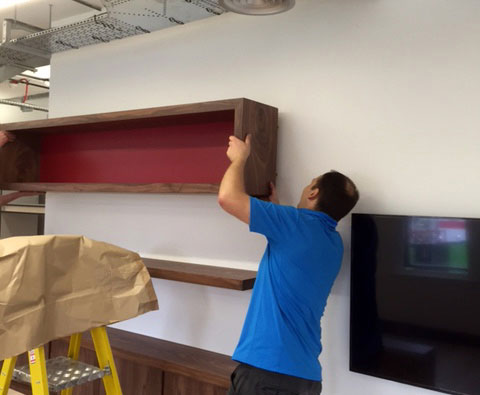

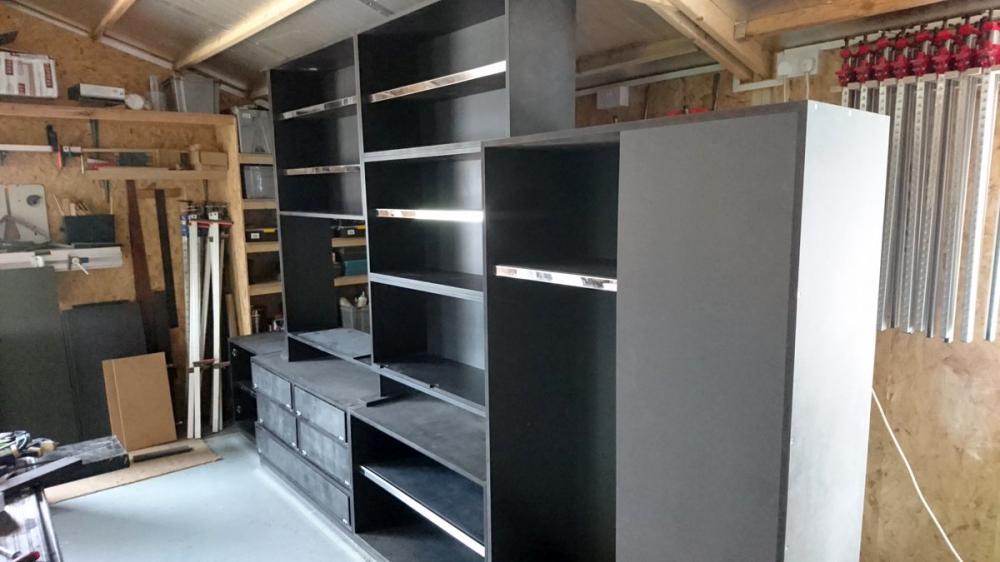

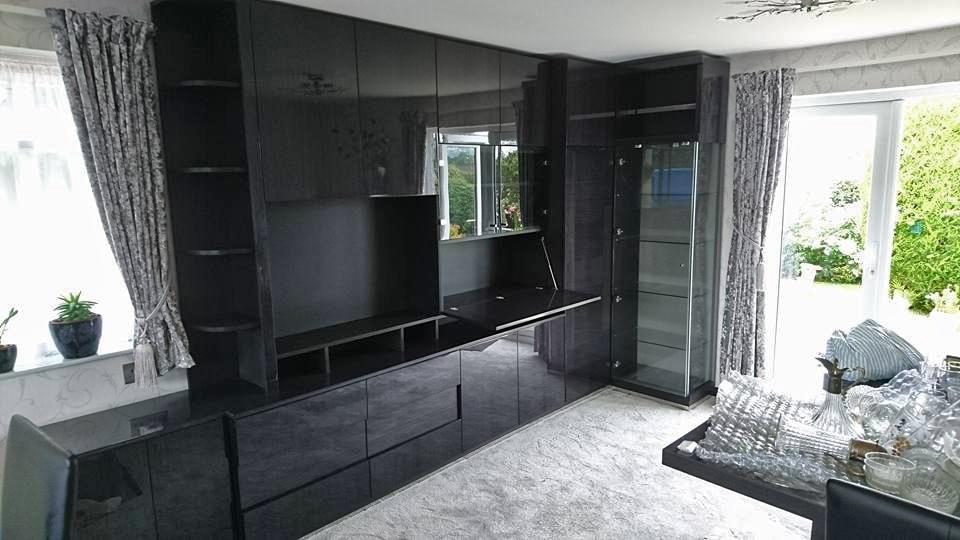

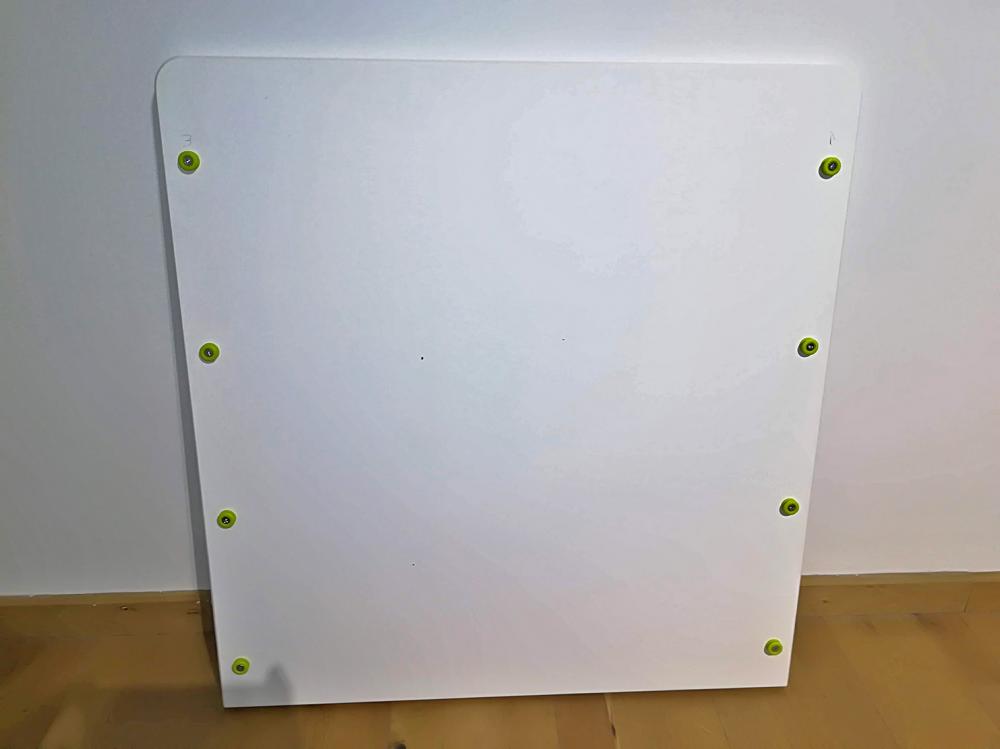

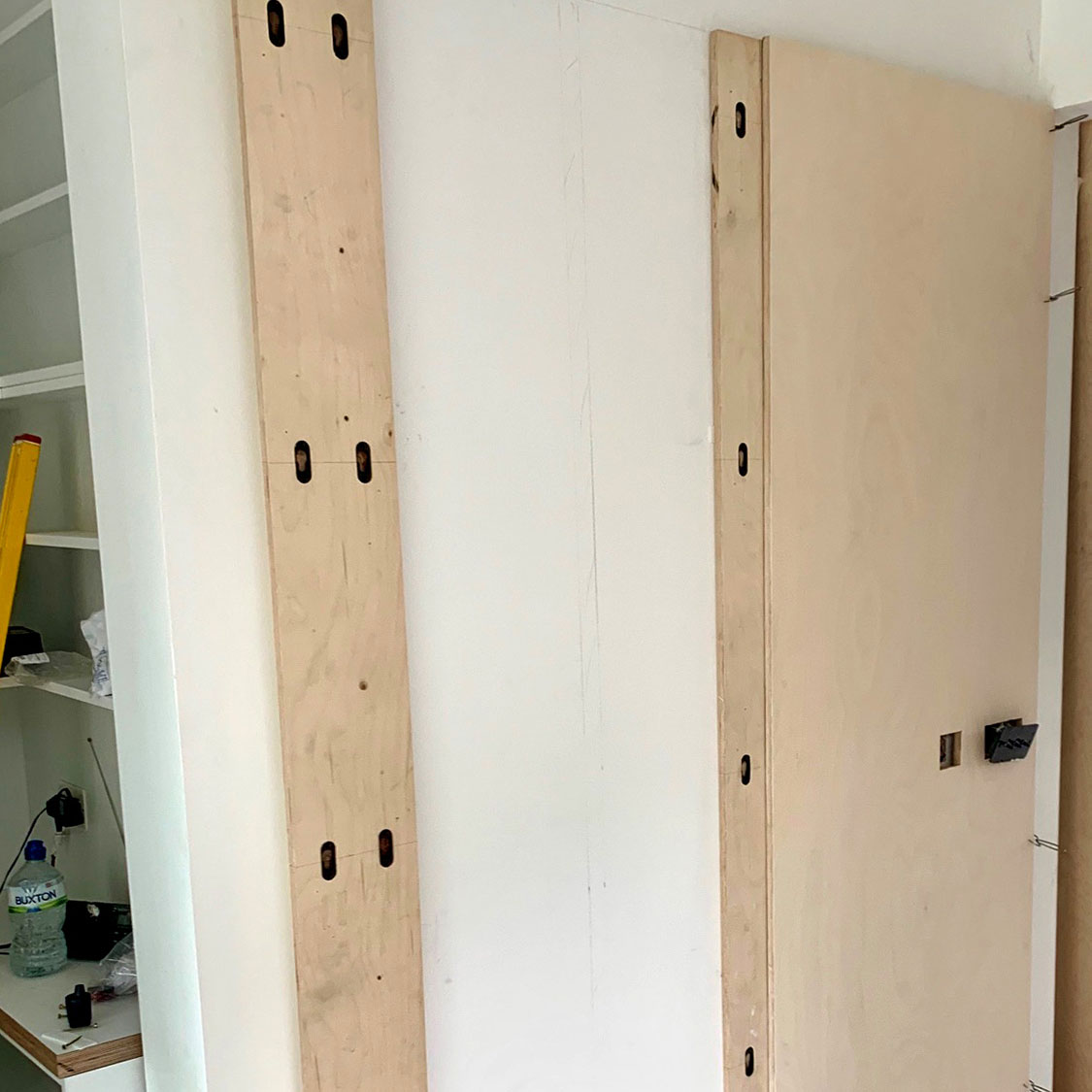

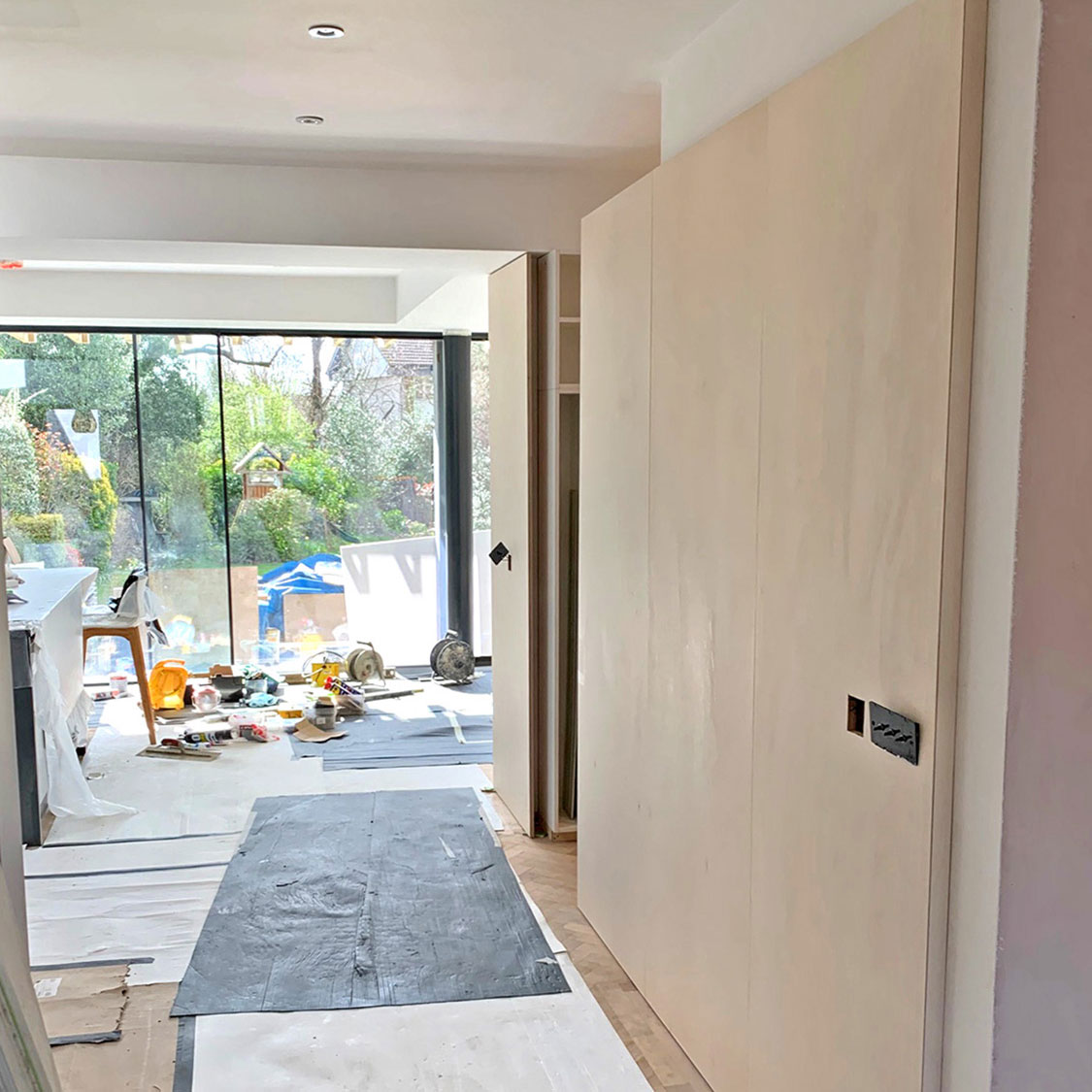

Furniture construction

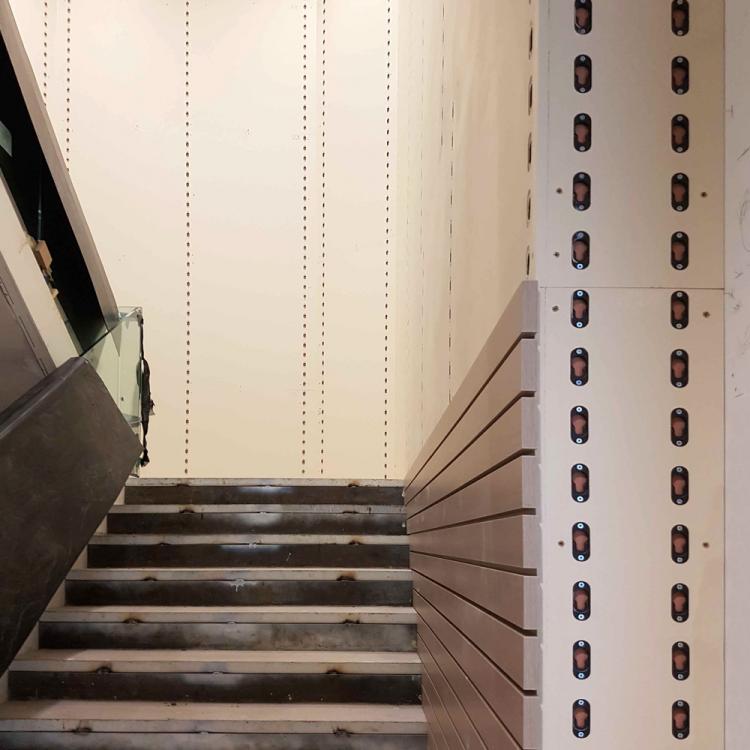

Slatted walls and ceilings

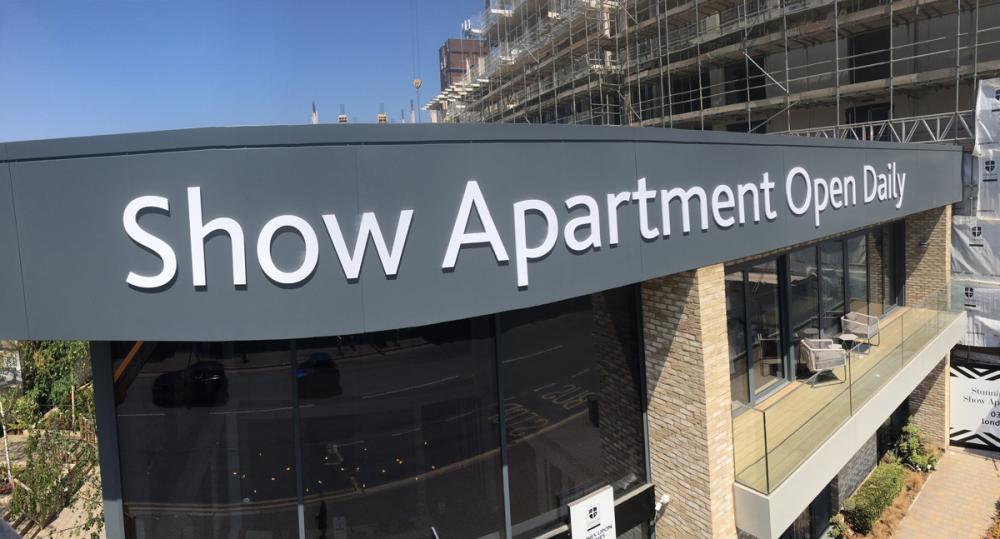

Signage

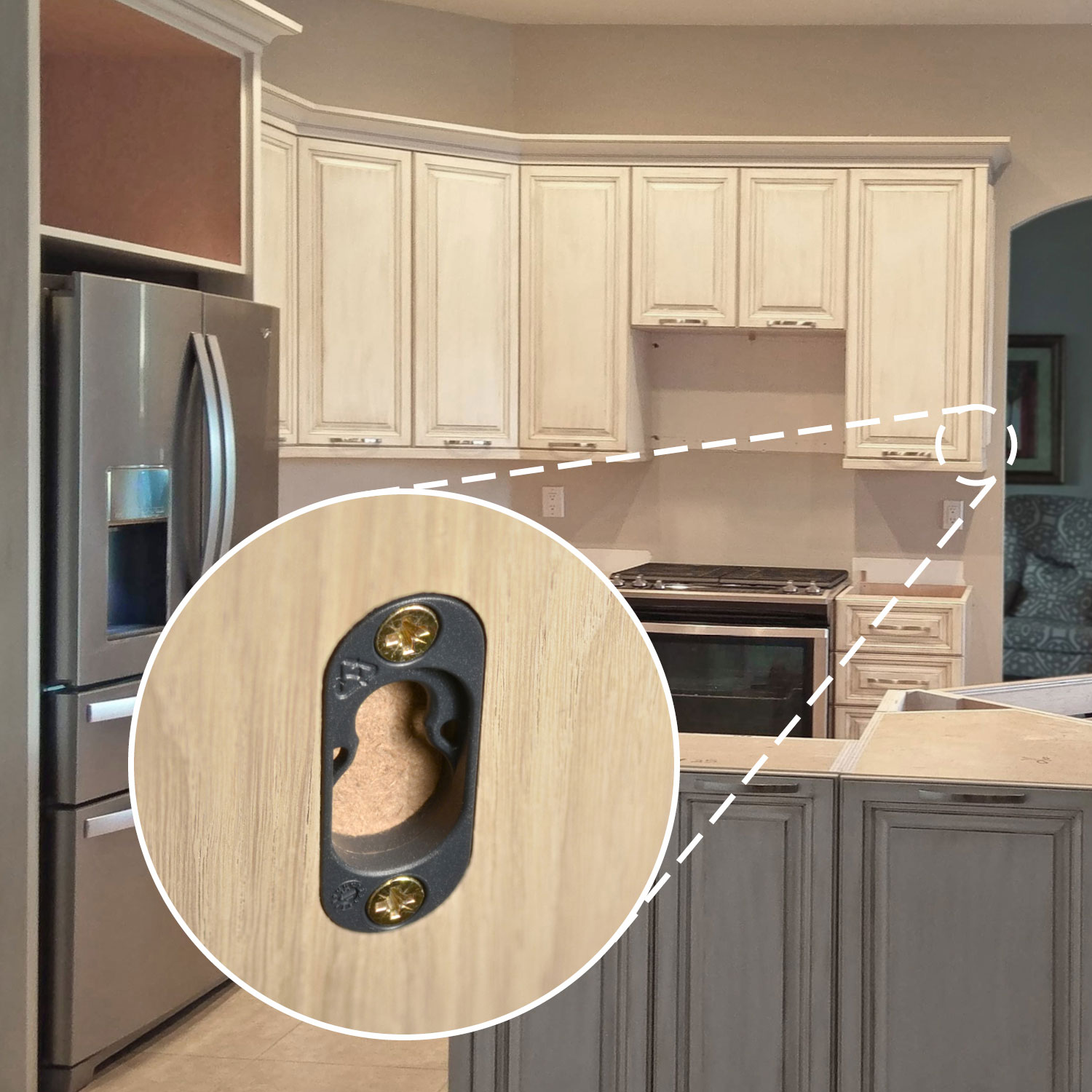

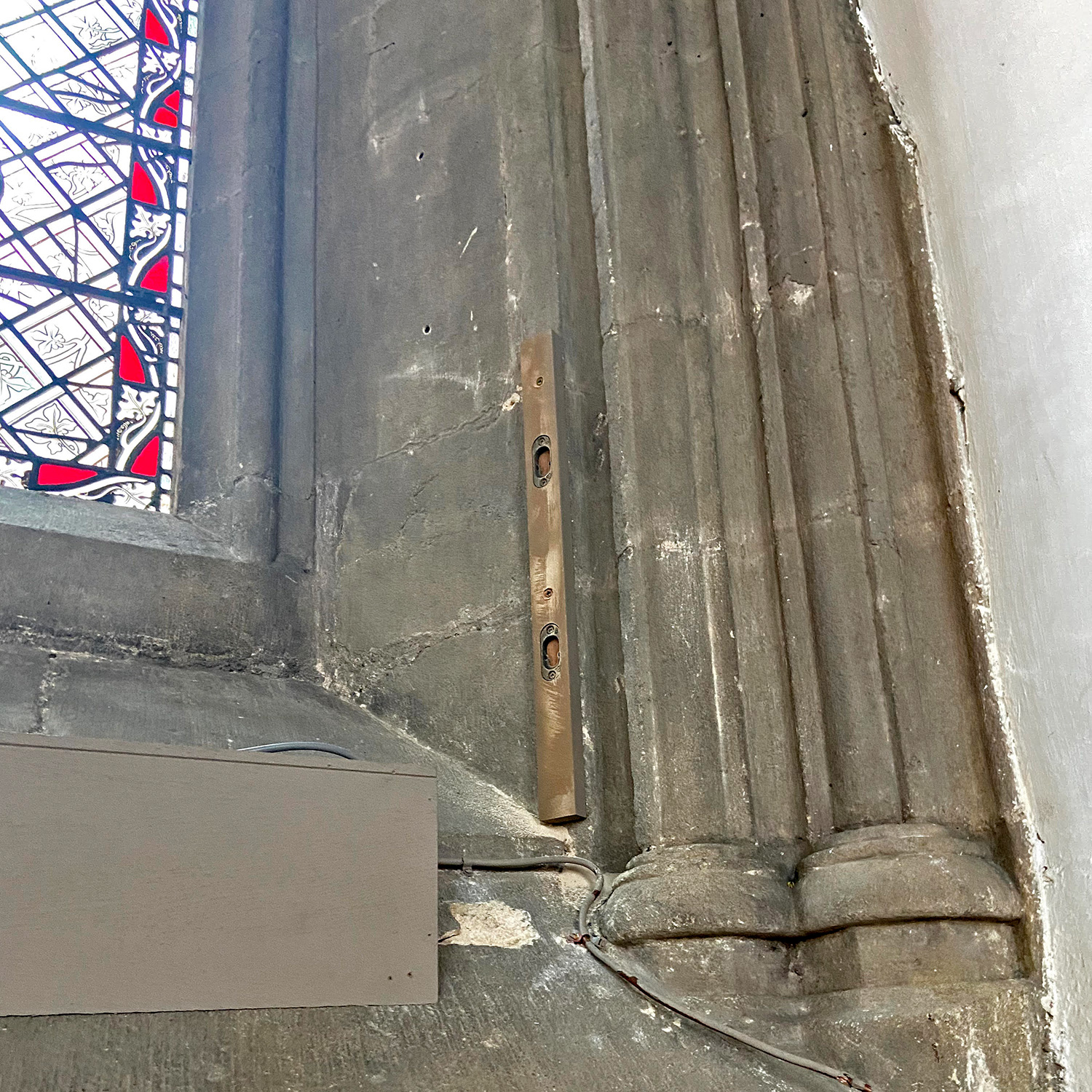

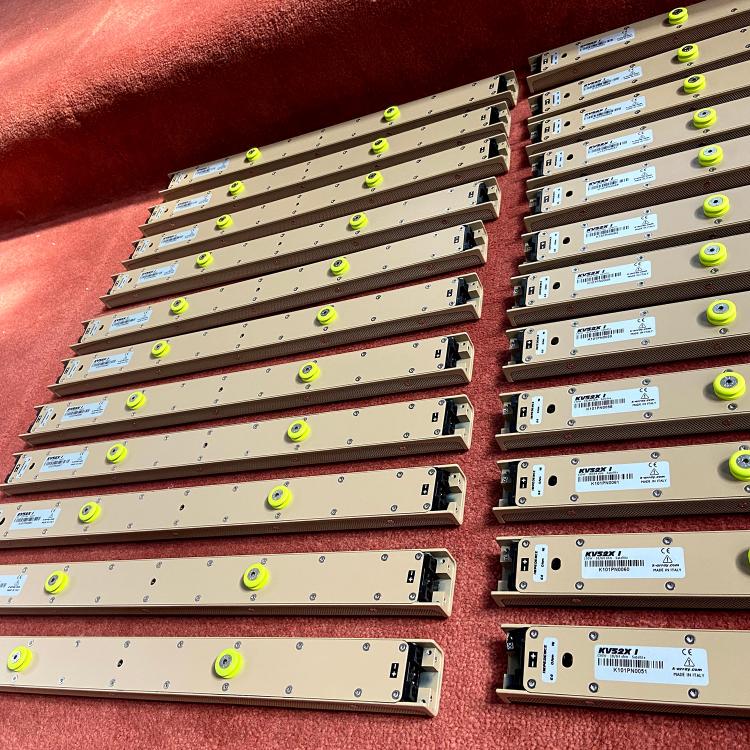

Button-fix Type 1 Flush applications

Instructions

Button-fix Type 1 Flush instructions

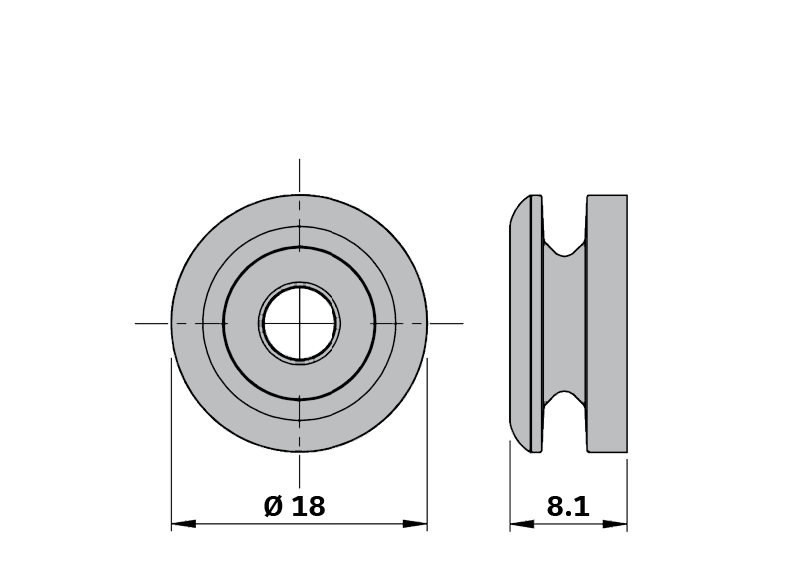

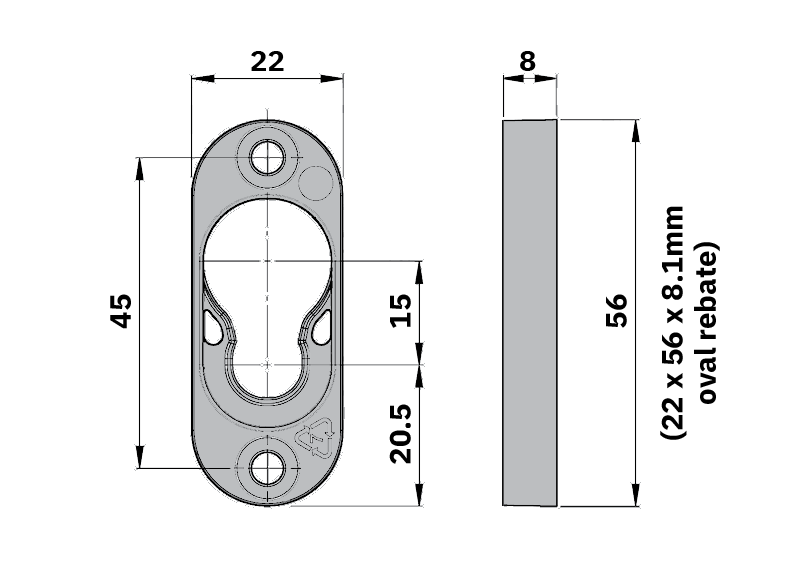

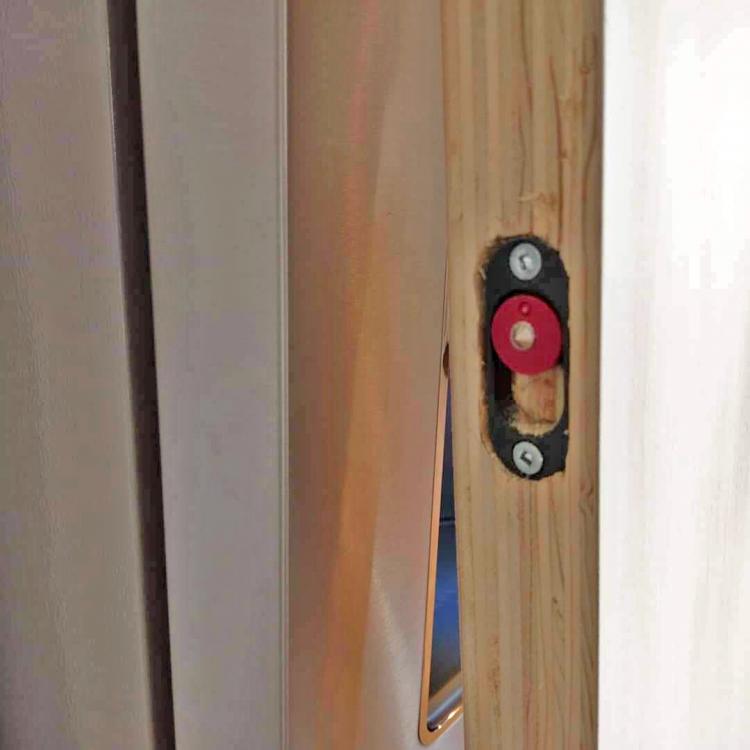

The Type 1 Flush Fix fits an oval rebate measuring 22 x 56 x 8.1mm deep. It can also be used surface-mounted, creating an 8mm gap between the panels. Engage the Buttons in the Fix and slide the panel down by 15mm, until Button-fix goes 'click'. The Type 1 Flush Button-fix can be configured for sideways assembly too.

Click here for a guide to screw sizes to use with Button-fix

Click below to download the full instructions in your preferred language:

Instructions for Use - English (UK)

Instructions for Use - English (US)

Installationsanleitung - Deutsch

Instructions d'utilisation - Français

Instrucciones - Español

Instrukcja montażowa - Polskie

Accessories for Button-fix Type 1 Flush

Button Marker Type 1

The Button Marker for Type 1 helps to quickly and accurately align the Button-fix installation, reducing the need for measuring and marking out.

Snap a marker into each Fix, then position the second panel and press firmly. The marker points will leave indents in the panel surface, which can be used as pilot guides for the Buttons.

Router Multijig Type 1

The Multijig helps when machining the oval recesses required for rebated configurations of Button-fix.

The Multijig frame is clear acrylic, so that you can see the workpiece below, and has printed guide marks. It has three clearly labelled apertures dimensioned to suit the Type 1, Type 1 Flush, Type 1 Bonded and Type 1 Metal Fixes.

Download instructions for how to use the Button-fix Multijig

Test Reports

Text to be provided

Button-fix Product Selector and Features Guide.

Features of the Fix	Type 1	Type 1 Flush	Type 1 Bonded	Type 1 Metal	Type 2

Material	Nylon PA6	Nylon PA6	ABS	Zinc alloy	Nylon PA66
Connects face-to-face
Connects at 90°
Drop down or sideways engagement
Push-on engagement
For use on fire-retardant panels
Surface-mounted
Semi-rebated/recessed
Fully rebated/recessed
Attached with screws
Bonded
Minimum panel thickness	10mm (1)	18mm (2)	No restriction	10mm (1)	10mm (1)
Marker accessories (available separately)
Router multijig (available separately)

(1) 10mm minimum with Varianta/Euro screws; 15mm minimum with wood screws
(2) Minimum panel thickness 28mm when rebating into the edge of the panel

Download this guide as a PDF

Files available for download relating to Button-fix Type 1 Flush

Please note you will be required to submit your details before downloading 3d CAD files – if you have any questions, contact us.

Other products

Type 1

Connects panels to walls or a parallel panel

Drop down or sideways engagement

Ideal for acoustic, wall and ceiling panels

view product information

Type 1 Bonded

For bonding to panels of any thickness

Drop down or sideways engagement

Ideal for signage and exhibition displays

view product information

Type 2

Connects panels at 90° or to a frame

Push-on engagement

Ideal for service access such as bath panels

view product information

Type 1 Metal

For use on fire-retardant panels

Drop down or sideways engagement

Ideal for marine and other transport interiors

view product information

View all Button-fix products

Button-fix insights

Get advice, guidance, best practice and industry insights from experts and members of the Button-fix team. We’ll also give you the very latest product news and updates.

VIEW OUR INSIGHTS SECTION

What do our customers say about Button-fix?

"Button-fix works well with our CNC capabilities and gives us the high degree of accuracy we need to get a good finish with shadow gaps."

"Bought these to solve a difficult fixing problem and couldn’t believe how good they are. Can thoroughly recommend!"

"Great little things, work really well, solidly designed, can't fault them at all."

"Purchased this item to fit some removable cushions on some seating and was pleasantly surprised at how easy to fit they were and how well they worked. Great bit of kit!"

"Good and strong, easy to fit! Did a cracking job, good value for money!!"

"Great solution to a tricky panel installation. Just the job!"

"Exactly what I wanted: the perfect hidden panel fixing. I’ve been looking for this for years."

"These are the 'dog's danglies' when it comes to concealed fittings for panels. Easy to fit, strong and well made, they are suitable for loads of jobs."

"I fitted my panel using this kit and am absolutely thrilled; why would anyone not use this kit?"

"It works! Best secret removable fixing found to date. Easy to use and robust."

RT @MadeinBritainGB: "Our association with the organisation and badge of ‘Made in Britain’, as well as our quick lead times from production…

15 Dec | View on twitter

RT @ButtonfixUK: Take a look at our latest Insights story https://t.co/LkpTIJaRlu to see how Button-fix is being used to install acoustic p…

20 Oct | View on twitter

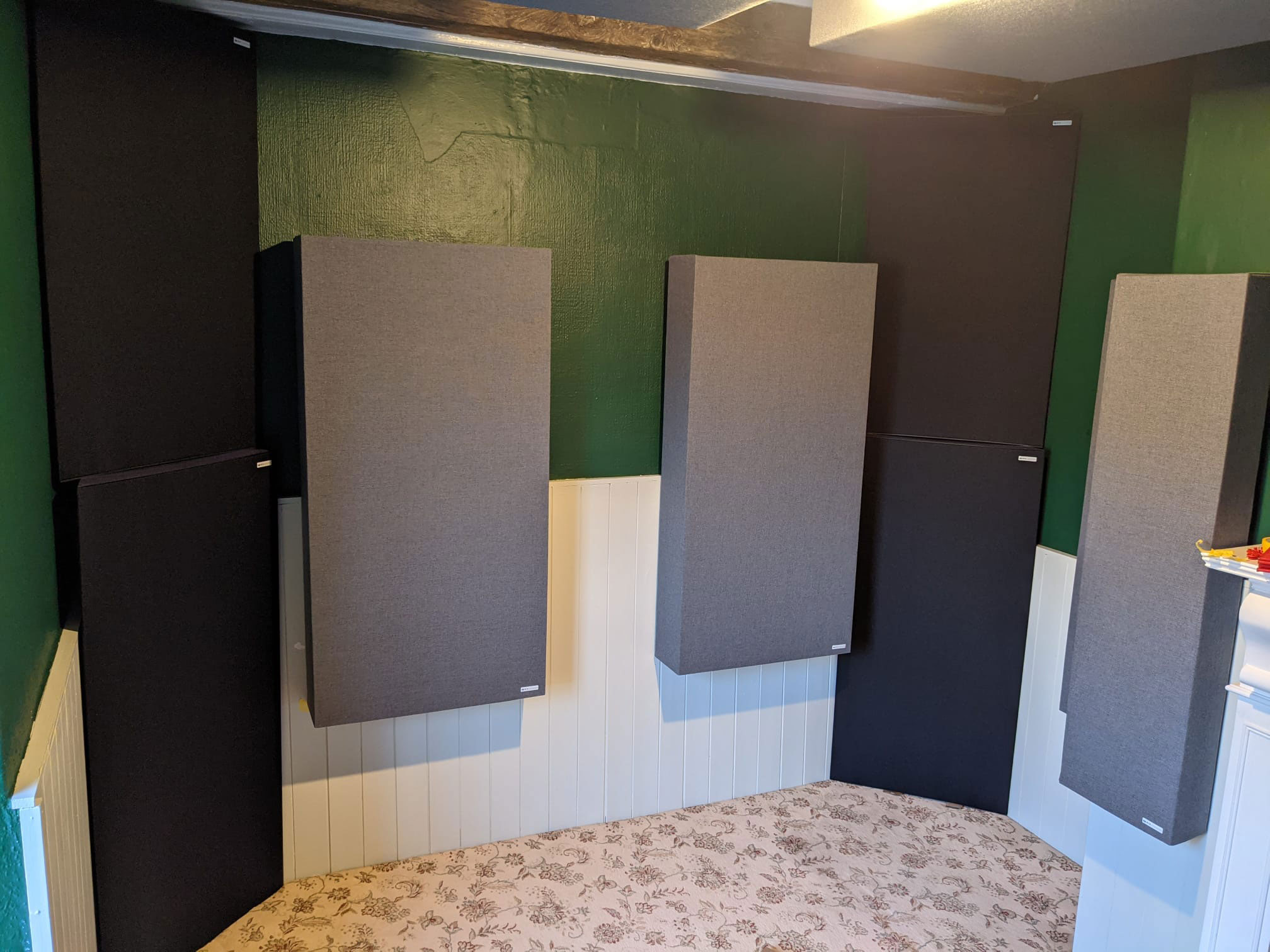

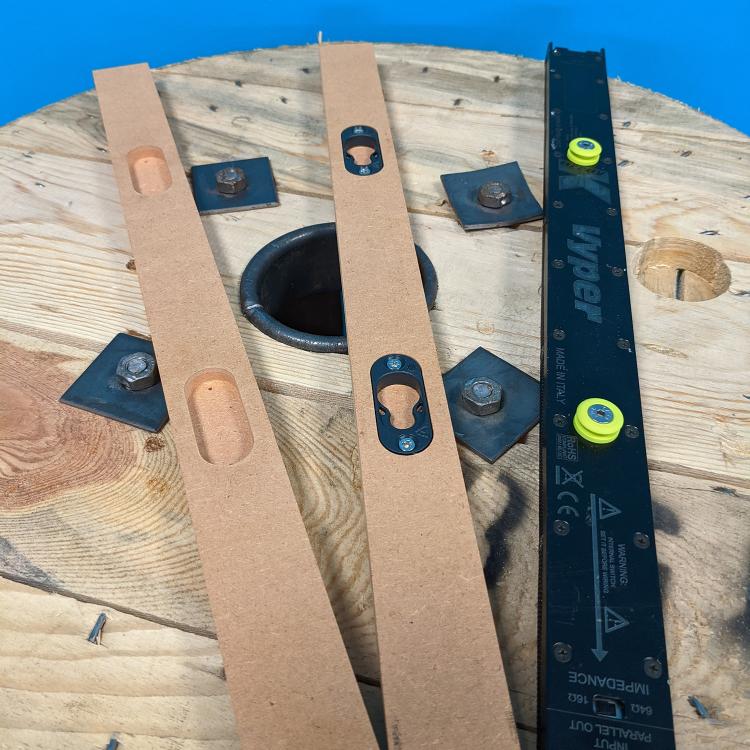

Take a look at our latest Insights story https://t.co/LkpTIJaRlu to see how Button-fix is being used to install acoustic panels in recording Studios. #panelfixing #recordingstudios #acousticsolutions #acousticpanels #installations #buttonfix https://t.co/vrjnucg8ff
