Connects parallel panels where the emphasis is on strength. Highly versatile, it can be surface-mounted or semi-recessed into the panel, orientated for vertical or sideways assembly.
Both parts of the connector are moulded from 30% glass filled nylon PA6 - a strong and robust engineering polymer. As a general guide, four Button-fix Type 1 fasteners on a vertical panel will support loads weighing up to a maximum of 440lbs (200kg), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Manufactured in the UK.
Please email our technical team and we'll be happy to help:

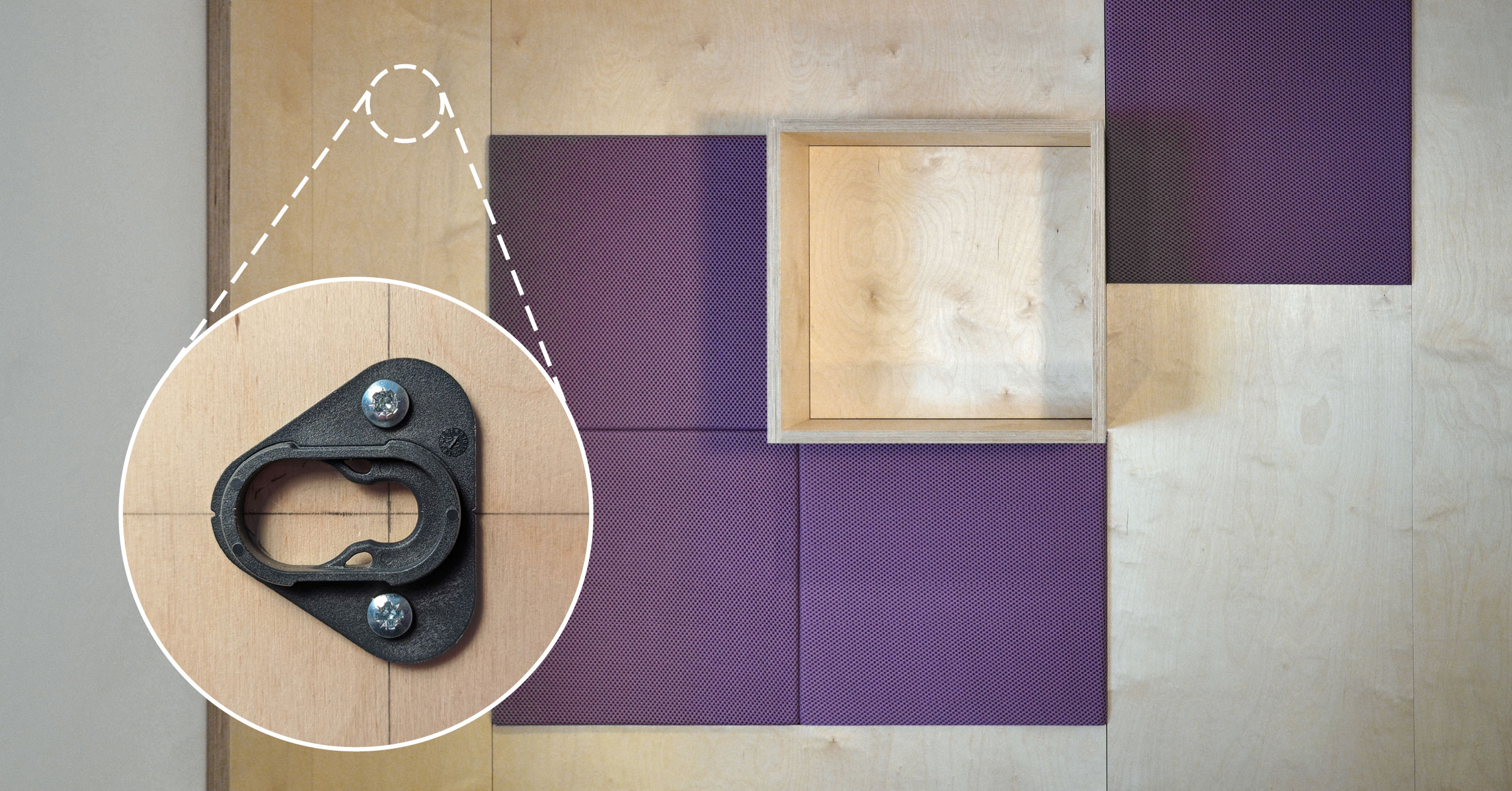

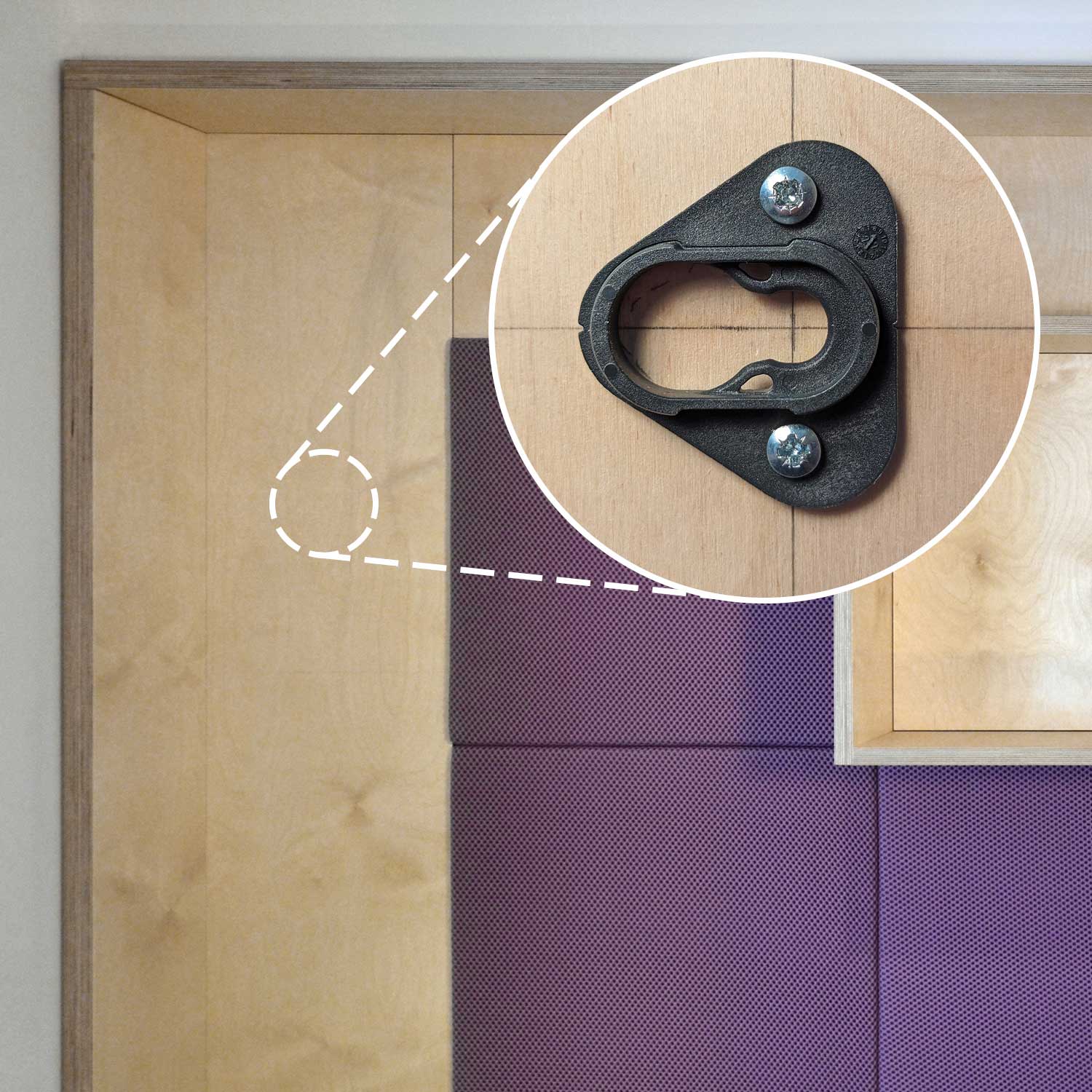

For a wide variety of applications on vertical or horizontal surfaces, the versatile Button-fix Type 1 is an ideal choice.
Typical uses include:

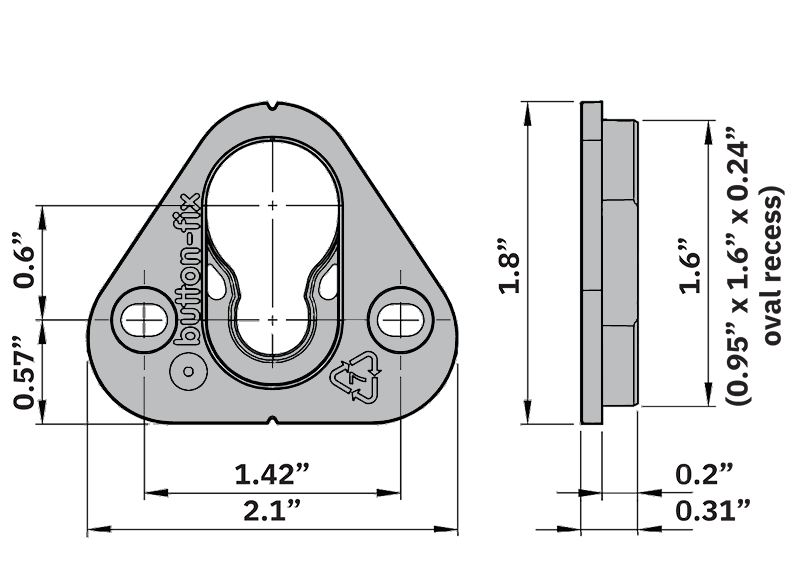

The Type 1 Fix can be surface-mounted, creating a 0.31" gap between the panels, or semi-recessed to reduce the gap to 0.12". Engage the Buttons in the Fix and slide the panel down by 0.6", until Button-fix goes 'click'. The Type 1 Button-fix can be configured for sideways assembly too.
The Button Marker for both Type 1 and Type 3 helps to quickly and accurately align the Button-fix installation, reducing the need for measuring and marking out.
Snap a marker into each Fix, then position the second panel and press firmly. The marker points will leave indents in the panel surface, which can be used as pilot guides for the Buttons.
The Multijig helps when machining the oval recesses required for rebated configurations of Button-fix.
The Multijig frame is clear acrylic, so that you can see the workpiece below, and has printed guide marks. It has three clearly labelled apertures dimensioned to suit the Type 1, Type 1 Flush, Type 1 Bonded and Type 1 Metal Fixes.
 |
 |
 |
 |
 |
 |
|
| Features of the Fix | Type 1 | Type 1 Flush | Type 1 Bonded | Type 1 Metal | Type 2 | Type 3 |
|---|---|---|---|---|---|---|
| Material | Nylon PA6 | Nylon PA6 | ABS | Zinc alloy | Nylon PA66 | PBT |
| Connects face-to-face | ||||||
| Connects at 90° | ||||||
| Drop down or sideways engagement | ||||||
| Push-on engagement | ||||||
| For use on fire-retardant panels | ||||||
| Surface-mounted | ||||||
| Semi-rebated/recessed | ||||||
| Fully rebated/recessed | ||||||
| Attached with screws | ||||||
| Bonded | ||||||
| Minimum panel thickness | 10mm (1) | 18mm (2) | No restriction | 10mm (1) | 10mm (1) | 10mm |
| Marker accessories (available separately) | ||||||
| Router multijig (available separately) |
