For applications where panel-to-panel contact is required. It fits a simple oval recess and can be recessed into the edge of a panel of at least 1.1" thick or the face of a panel of at least 0.75" thick.
Both parts of the connector are moulded from 30% glass filled nylon PA6 - a strong and robust engineering polymer. As a general guide, four Button-fix Type 1 Flush fasteners on a vertical panel will support loads weighing up to a maximum of 220lbs (100kg), provided that the screws and substrate are properly matched and all other installation instructions are complied with. Manufactured in the UK.
Please email our technical team and we'll be happy to help:
When you require a strong yet demountable connection between panels with no gap between them, Type 1 Flush is the ideal choice.
Typical uses include:

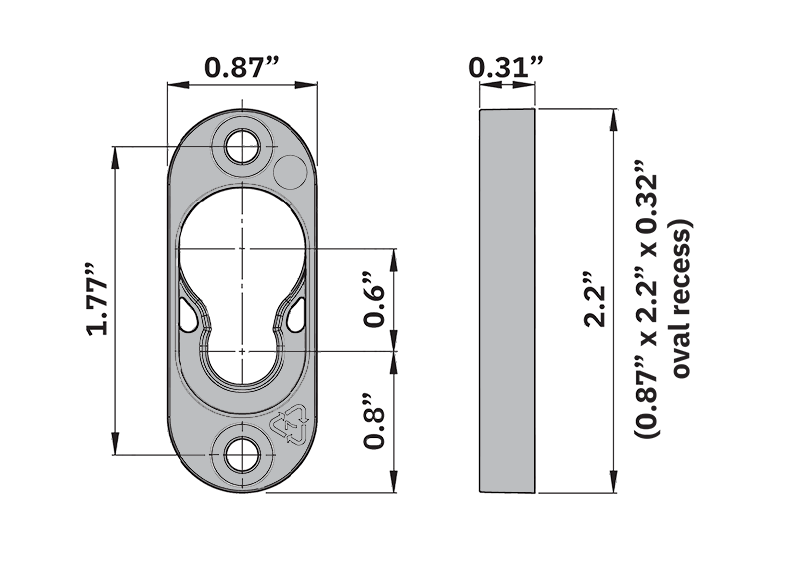

The Type 1 Flush Fix fits an oval rebate measuring 0.87" x 2.2" x 0.315" deep. It can also be used surface-mounted, creating a 0.31" gap between the panels. Engage the Buttons in the Fix and slide the panel down by 0.6", until Button-fix goes 'click'. The Type 1 Flush Button-fix can be configured for sideways assembly too.
The Button Marker for both Type 1 and Type 3 helps to quickly and accurately align the Button-fix installation, reducing the need for measuring and marking out.
Snap a marker into each Fix, then position the second panel and press firmly. The marker points will leave indents in the panel surface, which can be used as pilot guides for the Buttons.
The Multijig helps when machining the oval recesses required for rebated configurations of Button-fix.
The Multijig frame is clear acrylic, so that you can see the workpiece below, and has printed guide marks. It has three clearly labelled apertures dimensioned to suit the Type 1, Type 1 Flush, Type 1 Bonded and Type 1 Metal Fixes.
 |
 |
 |
 |
 |
 |
|
| Features of the Fix | Type 1 | Type 1 Flush | Type 1 Bonded | Type 1 Metal | Type 2 | Type 3 |
|---|---|---|---|---|---|---|
| Material | Nylon PA6 | Nylon PA6 | ABS | Zinc alloy | Nylon PA66 | PBT |
| Connects face-to-face | ||||||
| Connects at 90° | ||||||
| Drop down or sideways engagement | ||||||
| Push-on engagement | ||||||
| For use on fire-retardant panels | ||||||
| Surface-mounted | ||||||
| Semi-rebated/recessed | ||||||
| Fully rebated/recessed | ||||||
| Attached with screws | ||||||
| Bonded | ||||||
| Minimum panel thickness | 10mm (1) | 18mm (2) | No restriction | 10mm (1) | 10mm (1) | 10mm |
| Marker accessories (available separately) | ||||||
| Router multijig (available separately) |
Reception and stairwell clad with 75mm wide timber slats, Ultima Business Solutions, Reading. Apex Design Limited
Reception and stairwell clad with 75mm wide timber slats, Ultima Business Solutions, Reading. Apex Design Limited
Reception and stairwell clad with 75mm wide timber slats, Ultima Business Solutions, Reading. Apex Design Limited
Reception and stairwell clad with 75mm wide timber slats, Ultima Business Solutions, Reading. Apex Design Limited
Kitchen storage wall in a residential refurbishment. The Greenwich Alcove Company
Kitchen storage wall in a residential refurbishment. The Greenwich Alcove Company
Kitchen storage wall in a residential refurbishment. The Greenwich Alcove Company
Kitchen storage wall in a residential refurbishment. The Greenwich Alcove Company
Speaker mounts in an Oxford college chapel. NoiseBoys Technologies Ltd
Speaker mounts in an Oxford college chapel. NoiseBoys Technologies Ltd
Speaker mounts in an Oxford college chapel. NoiseBoys Technologies Ltd
Speaker mounts in an Oxford college chapel. NoiseBoys Technologies Ltd

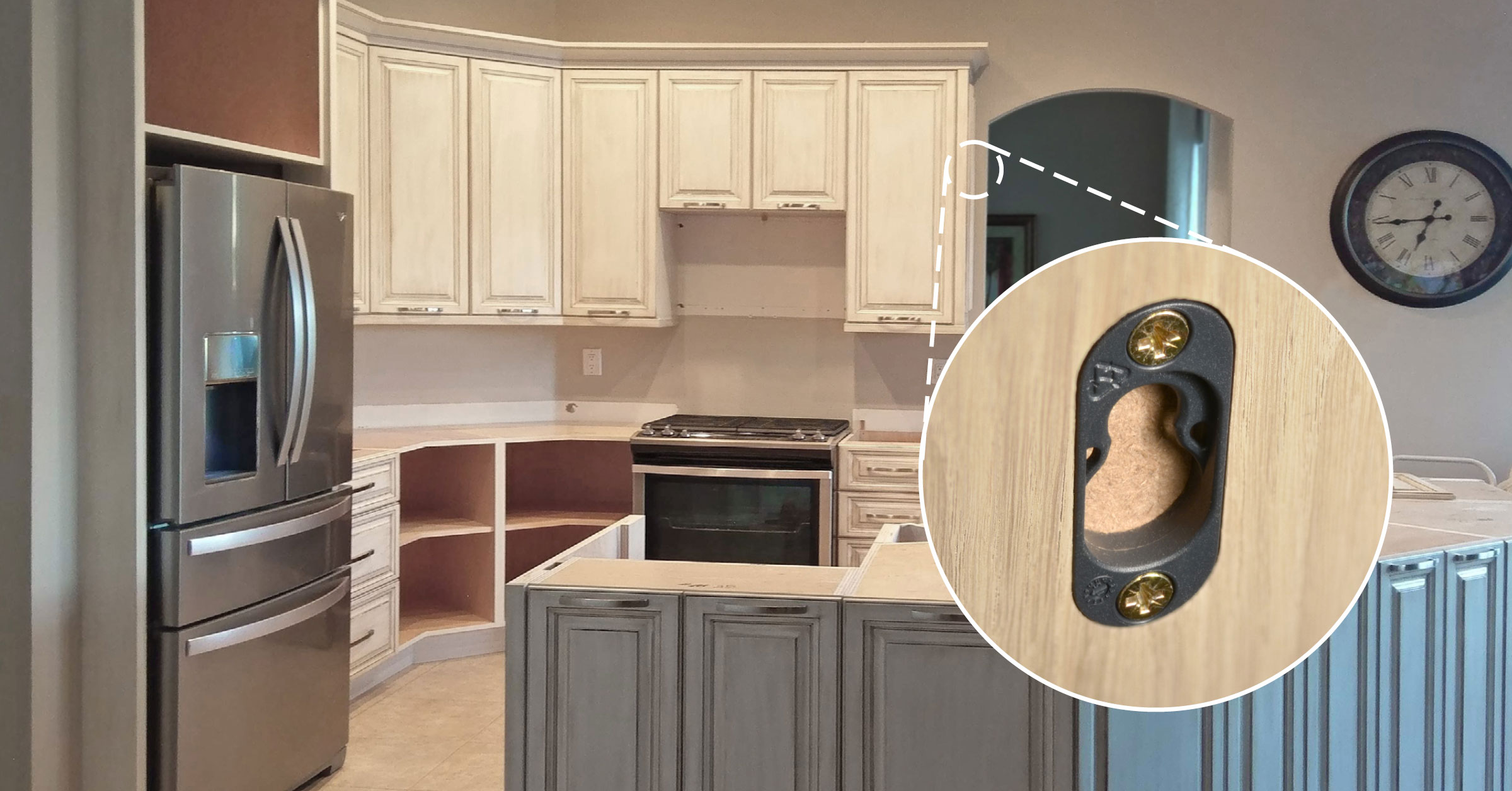

End panels mounted on Button-fix in a domestic kitchen fit-out. Hurleys Craftworks Inc.
